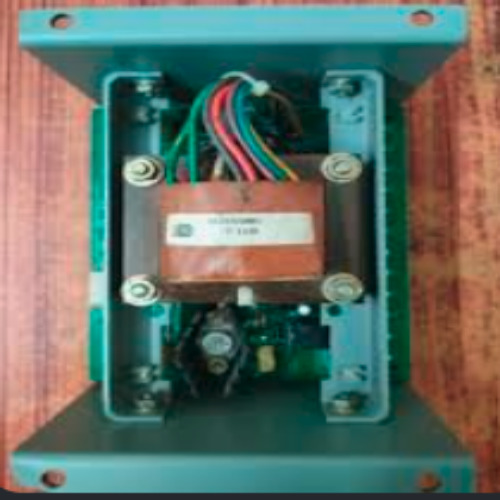

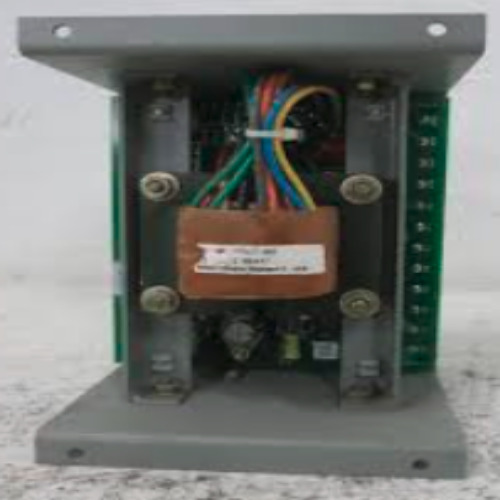

Exciter Diode Monitor

Price 295295.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Exciter Diode Monitor Specification

Capacity
N/A Pcs/hr

Power
43 mA Milliampere (mA)

Material
Industrial-grade electronic components housed in a metal or molded enclosure

Classification
Electrical Monitoring and Protection Device

Dimension (L*W*H)
15.2 10.2 5.1 cm Centimeter (cm)

Voltage
200 240 V AC Volt (v)

Application
Used in brushless synchronous generators, industrial alternators, diesel and gas generator sets, power plants, captive power systems, and standby power generation systems to monitor rotating exciter diode failures and improve generator reliability.

Connection
Electrical wired connection with terminal blocks for power supply, sensing input, and alarm relay output. Exact terminal configuration depends on the EDM-200 version.

Usage
Used to monitor rotating rectifier diodes in brushless synchronous generators and alternators. It detects open-circuit and short-circuit diode faults and provides an alarm output to help prevent excitation-system failures, reduce generator downtime, and support preventive maintenance

Product Type
Exciter Diode Monitor

Operate Method
Continuous electronic monitoring of exciter field current to detect open-circuit or short-circuit rotating rectifier diode faults in brushless generators. When a fault is detected, the device activates an alarm relay to alert the operator.

Weight
1.64 Kilograms (kg)

Color
Black / Dark Grey

Accuracy
5% %

Pressure
N/A PSI

Function
Monitors the rotating rectifier diodes in brushless generators and detects open-circuit or short-circuit diode faults. It provides an alarm relay output to alert operators to excitation-system problems, supporting preventive maintenance and reliable generator operation.

Size
15.2 10.2 5.1 cm

Exciter Diode Monitor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Exciter Diode Monitor

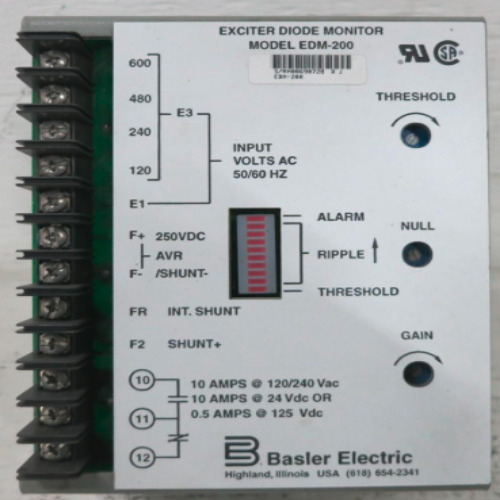

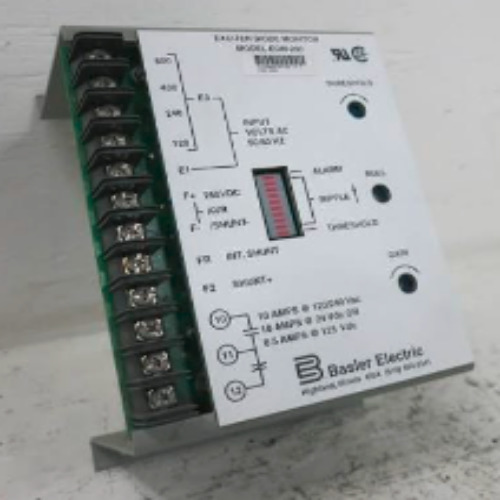

The Basler Electric EDM-200 Exciter Diode Monitor is an advanced monitoring device designed to supervise the condition of rotating rectifier diodes in brushless synchronous generators and alternators. It helps detect open-circuit and short-circuit diode failures in the excitation system, supporting reliable generator performance and preventive maintenance.

The EDM-200 monitors excitation-related electrical parameters and provides fault indication through its monitoring and alarm functions. Its relay output can be integrated with suitable generator control panels, alarm systems, and monitoring circuits to alert operators when a diode fault is detected.

This device is suitable for industrial power plants, standby generator systems, captive power generation facilities, and other applications using brushless excitation systems. It helps maintenance personnel identify potential excitation-system problems early, reduce unplanned downtime, and improve generator operational reliability.

Key Features:

Monitors rotating rectifier diode condition in brushless generators.
Detects open-circuit and short-circuit diode faults.
Provides fault alarm relay output for external monitoring.
Supports preventive maintenance and troubleshooting.
Designed for industrial generator excitation applications.
Suitable for integration with compatible generator monitoring and control systems.
