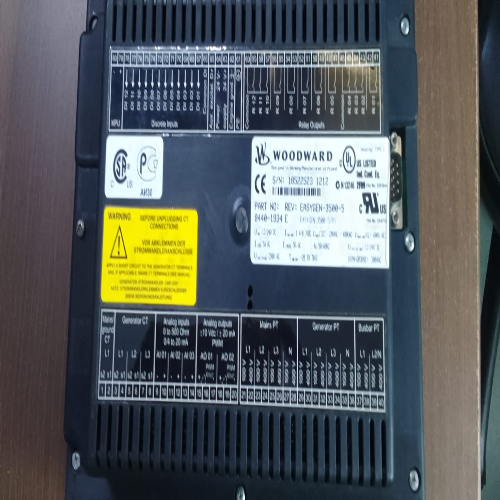

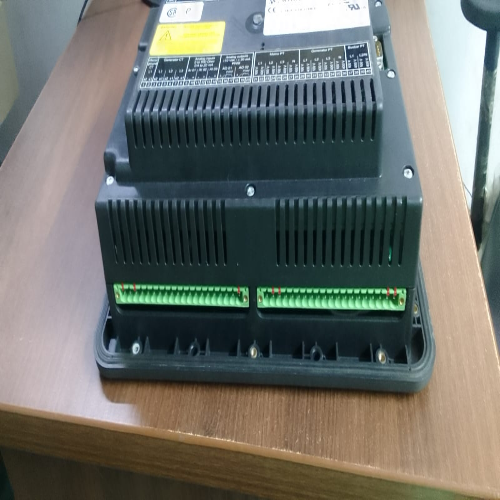

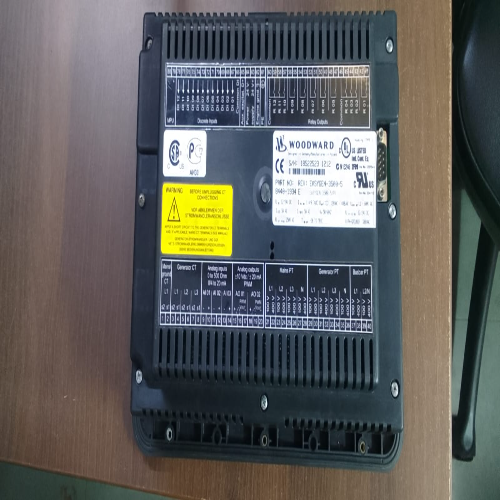

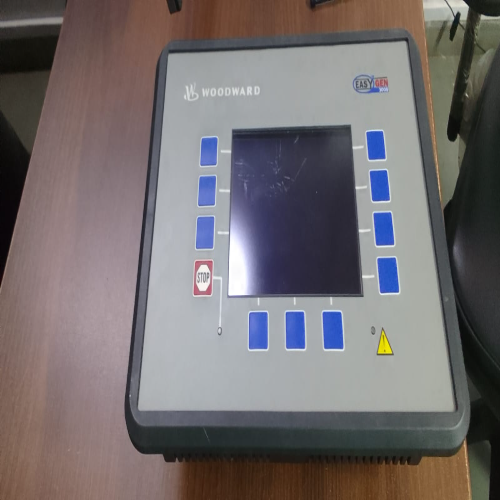

Woodward 3500-5

Name: Woodward 3500-5
Brand: HERTEL INDUSTRIES PVT LTD
Price: 165000.0 INR
Availability: InStock

Price 165000.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

Woodward 3500-5 Specification

Power Rating
17 W (Maximum power consumption)

Product Type
Digital Generator Set Controller

Function
Generator Control, Automatic Synchronization, Load Sharing, Generator Start/Stop Control, Circuit Breaker Control, Generator Protection, Voltage and Frequency Monitoring, and Mains-Parallel Operation.

Application
Used for diesel and gas generator set control, automatic generator synchronization, load sharing between multiple generators, mains-parallel operation, circuit breaker control, and industrial power management systems. Suitable for power plants, industrial facilities, commercial buildings, and standby power generation applications.

Size
282 217 99 mm

Weight
1.92 Kilograms (kg)

Capacity
1 Pcs/hr

Feature
Automatic Generator Synchronization Load Sharing Between Multiple Generators Automatic Generator Start/Stop Control Generator Voltage and Frequency Monitoring Circuit Breaker Control Generator Protection Functions Mains-Parallel Operation Active and Reactive Power Control 5.7-Inch Colour LCD Display Event and Alarm Monitoring Industrial Generator Control PC-Based Configuration Support

Advantage
High Reliability, Automatic Generator Synchronization, Efficient Load Sharing, Improved Generator Protection, Accurate Voltage and Frequency Monitoring, Reduced Manual Operation, Supports Parallel Generator Operation, User-Friendly Colour LCD Display, Enhanced Power Management, and Suitable for Industrial Power Generation Applications.

Rated Voltage
12/24 V Volt (V)

Usage & Applications
Used for diesel and gas generator set control, automatic generator synchronization, load sharing between multiple generators, mains-parallel operation, circuit breaker control, and industrial power management systems. Suitable for power plants, industrial facilities, commercial buildings, and standby power generation applications.

Operating Temperature
20 C to +70 C Celsius (oC)

Cable Type
Electrical Wiring Terminal / Plug-in Connector

Phase
3

Display Type
5.7-inch Colour LCD Display

Features
Automatic Generator Synchronization, Load Sharing, Automatic Mains Failure (AMF), Auto Start/Stop, Generator Protection, Voltage and Frequency Monitoring, Circuit Breaker Control, Active and Reactive Power Control, Colour LCD Display, Event Recording, Multi-Generator Parallel Operation, PC Configuration Support.

Frequency
50/60 Hertz (HZ)

Rated Current
1 A or 5 A Ampere (amp)

Material
Electronic Components with Plastic/Metal Enclosure

Conductor
Electronic Control Module

Woodward 3500-5 Trade Information

Minimum Order Quantity
4 Pieces

Delivery Time
1 Week

About Woodward 3500-5

The Woodward easYgen-3500-5 is an advanced electronic generator set controller designed for industrial power generation applications. It supports generator synchronization, load sharing, generator monitoring, and parallel operation with other generator sets or the mains supply, depending on the system configuration.

Key Features:

Automatic generator synchronization
Load sharing between multiple generators
Generator voltage and frequency monitoring
Generator start/stop control
Circuit breaker control
Generator protection and alarm monitoring
Colour LCD display
Industrial power management applications

Applications:

Diesel generator sets
Gas generator sets
Industrial power plants
Commercial buildings
Standby and backup power systems
Parallel generator installations

Technical Details:

Supply voltage: 12/24 V DC nominal
Operating supply range: 840 V DC
Display: Colour LCD
System frequency: 50/60 Hz applications
Installation: Generator control panel

Packaging: Standard protective packagin

Advanced Generator Synchronization

The Woodward 3500-5 streamlines generator synchronization processes, automatically balancing generator outputs and enabling seamless integration of multiple generators for stable power supply. This capability reduces manual intervention and enhances power reliability in industrial and commercial settings.

Comprehensive Protection & Monitoring

Featuring generator protection, real-time voltage and frequency monitoring, and event recording, the Woodward 3500-5 safeguards your power assets against electrical faults and provides clear operational visibility. Its robust protection functions minimize downtime and maximize equipment longevity.

User-Friendly Operation and Configuration

A 5.7-inch colour LCD display enables intuitive operation while PC-based configuration support allows easy customization. Operators benefit from simple navigation, clear alarm and event monitoring, and flexible control options for complex power management needs.

FAQ's of Woodward 3500-5:

Q: How does the Woodward 3500-5 ensure efficient load sharing between multiple generators?

A: The Woodward 3500-5 automatically monitors generator outputs and distributes loads evenly across all connected generators, improving operational efficiency and preventing overloads. This ensures stable power delivery, particularly in multisource environments.

Q: What applications are most suitable for the Woodward 3500-5 generator control module?

A: It is ideal for power plants, industrial facilities, commercial buildings, and standby power generation. Its advanced features support control and protection of diesel and gas generator sets, mains-parallel operation, and complex power management systems.

Q: When should I use the automatic generator start/stop control feature?

A: You should use the automatic start/stop feature during scheduled operations, demand-based start-ups, or when backup power is required, enabling seamless transitions without manual intervention and optimizing power availability.

Q: Where can the Woodward 3500-5 be mounted and operated?

A: The module is designed for installation in generator control panels within commercial, industrial, and utility power environments. Its durable enclosure and wide operating temperature range suit diverse placement needs and challenging conditions.

Q: What is the process for configuring the Woodward 3500-5 for different power management requirements?

A: Configuration is done via its PC-based support, allowing users to tailor functions such as synchronization, protection parameters, and monitoring settings through straightforward software interfaces, meeting varied operational goals.

Q: How does the 5.7-inch colour LCD display benefit operators during generator control and monitoring?

A: The large colour LCD clearly presents real-time system data, event logs, and alarms, making operational assessment easier and faster. It improves operator awareness and helps in quick troubleshooting or system adjustments.
