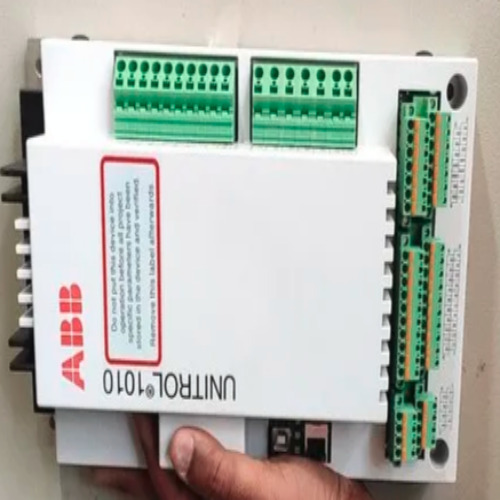

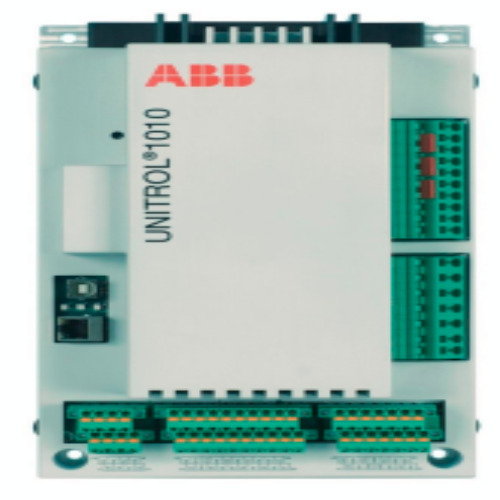

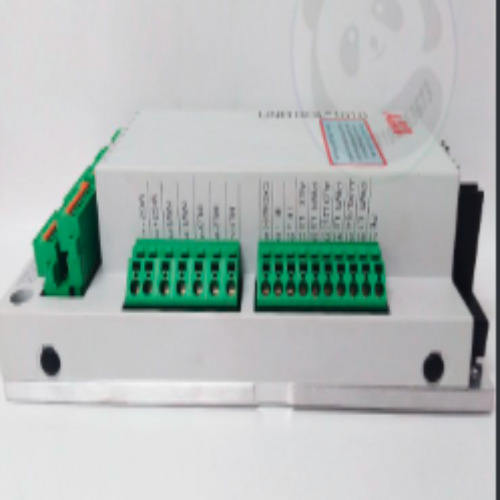

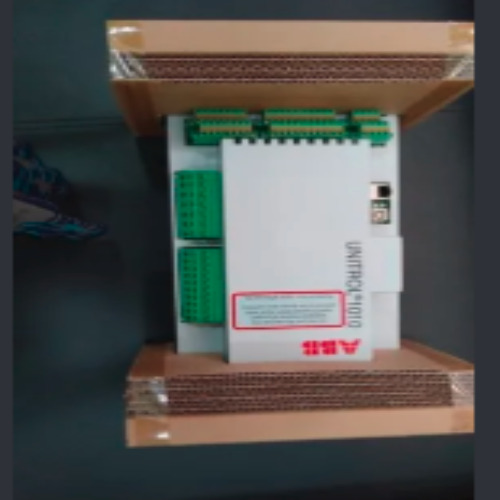

ABB UNITROL 1010

Price 415000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ABB UNITROL 1010 Specification

Mounting Type
Panel mounting / control cabinet mounting.

Humidity %
5 95%

Connector Type
Screw terminal blocks / plug-in terminal connectors

Insulation Material
Electrical-grade plastic / polymer insulation

IP Rating
IP20

Operating Temperature
0 C to +55 C Celsius (oC)

Efficiency
95 98%

Feature
Digital Automatic Voltage Regulation (AVR) Generator excitation control Continuous excitation output up to 10 A DC Generator voltage measurement up to 500 V AC Reactive power and power factor control Parallel generator operation support Adjustable voltage regulation settings Built-in monitoring and protection functions Communication interfaces: Ethernet, USB, RS-485 and CAN Compact design for industrial generator applications

Surface Finish
ndustrial-grade coated metal/plastic finish

Power Factor
0.8 lagging to 0.8 leading

Shape
Rectangular

Overheating Protection
YES

Power Rating
Up to 10 A DC

Product Type
Digital Automatic Voltage Regulator

Application
Automatic voltage regulation and excitation control of synchronous generators and alternators in industrial power plants, diesel generator sets, gas turbine generators, and marine power generation systems.

Protection Level
Other

Frequency (MHz)
50/60 Hertz (HZ)

Energy Consumption
10-30 Watt Hour (Wh)

Output Type
DC

Color
Grey

Dimension (L*W*H)
200 150 100 mm Millimeter (mm)

Rated Voltage
9 250 V AC Volt (V)

Weight
2.8 kg Kilograms (kg)

Usage & Applications
Usage: Automatically regulates generator terminal voltage by controlling the excitation current supplied to the rotor field winding. Applications: - Industrial synchronous generators and alternators. - Diesel and gas engine generator sets. - Power plants and captive power generation systems. - Hydro and steam turbine generator systems, where compatible with the excitation requirements. - Marine electrical power generation. - Reactive power and power factor control. - Parallel operation and reactive load sharing between generators. Main purpose: To maintain stable generator voltage, improve voltage regulation, and support reliable generator operation under varying load conditions.

Warranty
12 MONTH

Cable Type
Shielded control cable and insulated copper electrical wiring, depending on the connection.

Size
200 150 100 mm

Display Type
configuration and monitoring via computer software).

Phase
3 PHASE

Input Voltage
9 250 V AC Volt (V)

Features
Digital automatic voltage regulation (AVR) Automatic generator excitation control Continuous excitation output up to 10 A DC Generator voltage measurement up to 500 V AC Reactive power and power factor control Parallel generator operation support Voltage regulation adjustment Generator monitoring and control functions Communication interfaces: Ethernet, USB, RS-485 and CAN Compact industrial design Suitable for synchronous generators and alternators Supports stable generator voltage under varying load conditions

Rated Current
10 A DC Ampere (amp)

Connection Type
Screw terminals / plug-in terminal connectors

Conductor
Copper

Frequency
50/60 Hertz (HZ)

Material
Metal and electronic components

No Of Poles
3 POLE

ABB UNITROL 1010 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About ABB UNITROL 1010

The ABB UNITROL 1010 is a digital automatic voltage regulator (AVR) and excitation controller used to regulate the terminal voltage of synchronous generators and alternators. It controls the generator's excitation current to maintain stable output voltage as electrical load and operating conditions change.

It is designed for generator applications requiring reliable voltage regulation, excitation control, and protection functions. It can be used in industrial power generation, standby generator sets, and other synchronous generator installations, subject to the specific unit's configuration and ratings.

Technical specifications

The following specifications are based on ABB's published product documentation.

ABB

Parameter	UNITROL 1010
Brand	ABB
Product type	Digital automatic voltage regulator (AVR)
Function	Generator excitation and voltage regulation
Compatible machines	Synchronous generators and motors
Continuous excitation output	Up to 10 A DC
Machine voltage measurement	Up to 500 V AC
Auxiliary supply	9250 V AC (3-phase); 16250 V AC (1-phase); 18300 V DC
Communication	Ethernet, USB, RS-485, CAN
Digital I/O voltage	24 V
Analog I/O range	10 V
Enclosure protection	IP20
Local display	No built-in local control panel
Configuration software	ABB CMT1000

Important: Confirm the exact hardware revision and nameplate before ordering or replacing the unit. The 10 A rating is for continuous excitation output, not generator load current.

ABB Library

Main features and applications

Automatic voltage regulation: Maintains generator terminal voltage within the configured regulation settings.
Excitation control: Adjusts field excitation to support stable generator operation.
Reactive power and power factor control: Supports configured operating modes for generator load sharing.
Parallel generator operation: Supports reactive load sharing and voltage droop compensation.
Monitoring and communication: Provides configurable inputs/outputs and communication interfaces for integration with generator control systems.
Industrial applications: Diesel, gas and steam turbine generators, marine power systems and other suitable synchronous machines
