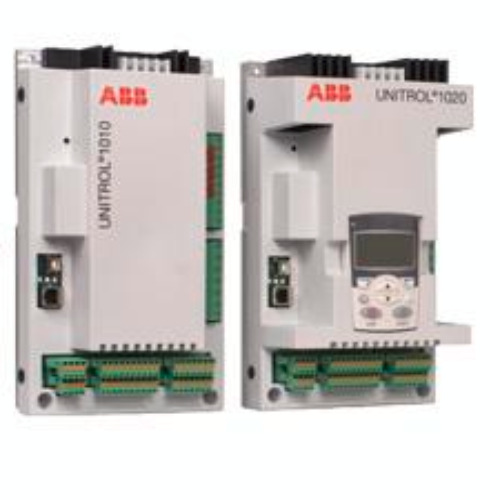

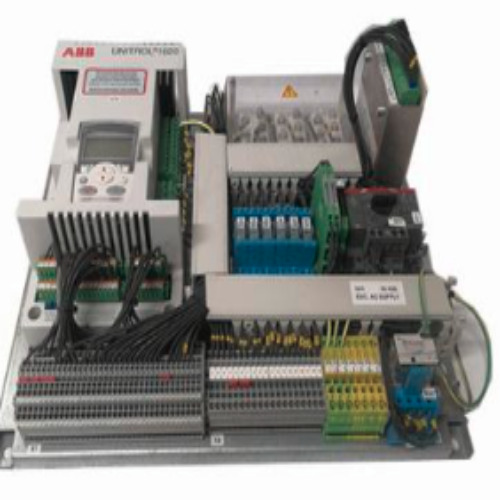

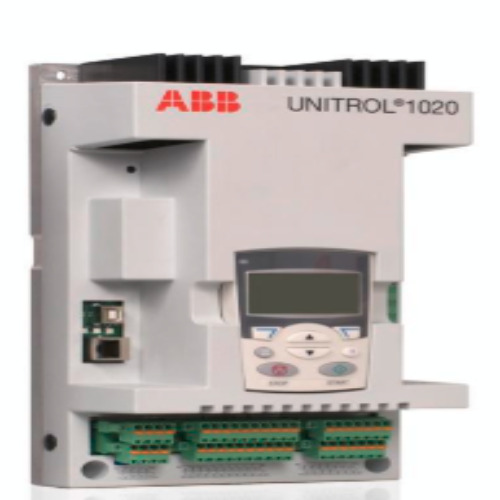

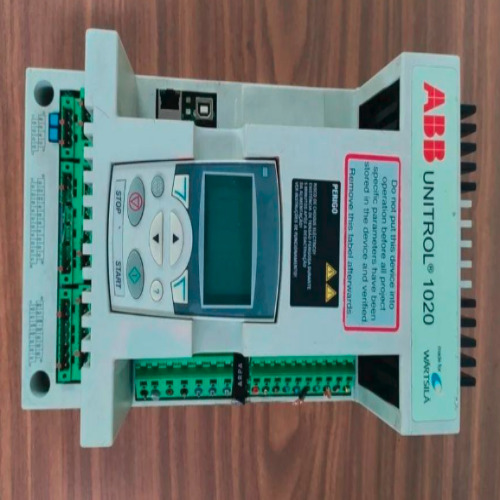

ABB UNITROL 1020

Price 598000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ABB UNITROL 1020 Specification

Shape
Rectangular

Surface Finish
Painted Metal Finish

Operating Temperature
40 C to +70 C Celsius (oC)

Connector Type
Screw-type terminal blocks and communication ports.

Power Factor
1.0 (unity power factor

Insulation Material
Plastic / Polymer insulation housing with a solid aluminium base plate. nexinstrument.com +1

Feature
Digital automatic voltage regulation (AVR) Excitation current up to 20 A DC continuous, subject to operating conditions Dual-channel redundancy support Automatic synchronization Reactive load sharing and voltage droop compensation Rotating diode monitoring Built-in display and status indication Integrated data logger and event logger Ethernet and USB communication interfaces Modbus TCP remote communication Adjustable voltage regulation and excitation limiters Motor excitation start function

Humidity %
5 95% RH

Overheating Protection
YES

Mounting Type
Panel-Mount / Cabinet-Mount Type

Efficiency
Approx. 95%

IP Rating
IP20

Power Rating
40W

Product Type
Digital Automatic Voltage Regulator

Application
Automatic voltage regulation and excitation control of synchronous generators. TradeIndia listing: Used in industrial generators, power plants, captive power generation systems, and alternators for generator voltage regulation, excitation control, and reactive power management.

Protection Level
Other

Frequency (MHz)
50/60 Hertz (HZ)

Rated Voltage
0 250 V AC / 0 300 V DC Volt (V)

Energy Consumption
40 W Watt Hour (Wh)

Output Type
DC

Color
White / Light Grey.

Dimension (L*W*H)
30.2 17 11.14 cm Centimeter (cm)

Weight
3.8 Kilograms (kg)

Warranty
12 MONTH

Cable Type
Shielded Control Cable / Power Cable

Size
30.2 17 11.14 cm

Input Voltage
0 250 V AC / 0 300 V DC Volt (V)

Display Type
LCD Display with Keypad

Phase
Three Phase

Conductor
Copper / Electronic PCB Conductors

Connection Type
Screw Terminal / Terminal Block Connection.

Features
Digital Automatic Voltage Regulation (AVR) Automatic generator excitation control Continuous excitation current up to 20 A DC Dual-channel redundancy support Automatic voltage regulation Reactive power and power factor control Reactive load sharing and voltage droop compensation Rotating diode monitoring Built-in LCD display and keypad Integrated data logging and event recording Communication interfaces for remote monitoring Adjustable voltage setpoints and excitation limiters Designed for synchronous generator applications

Frequency
50/60 Hz Hertz (HZ)

Material
Metal and Electronic Components

Rated Current
20 A DC Ampere (amp)

No Of Poles
N/A (Not Applicable).

ABB UNITROL 1020 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About ABB UNITROL 1020

ABB UNITROL 1020 is a digital automatic voltage regulator (AVR) and excitation controller designed to regulate the terminal voltage of synchronous generators. It controls the generator's excitation current to maintain stable output voltage as the electrical load changes.

It is used in generator sets, industrial power plants, and other power-generation applications where reliable voltage regulation and generator excitation control are required.

1. Product specifications

Parameter	Description
Manufacturer	ABB
Brand / series	UNITROL 1020
Product type	Digital automatic voltage regulator (AVR)
Main function	Generator voltage regulation and excitation control
Application	Synchronous generators and alternators
Control method	Digital closed-loop control
Controlled parameter	Generator terminal voltage
Excitation control	Regulates excitation through the associated excitation power stage
Operating mode	Automatic voltage regulation; additional modes depend on configuration
Installation	Electrical control panel / excitation system
Typical use	Industrial generators, power plants and standby generation
Documentation	Manufacturer's technical manual and product datasheet
