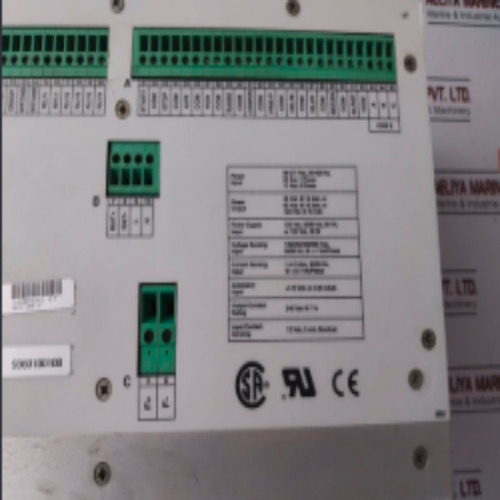

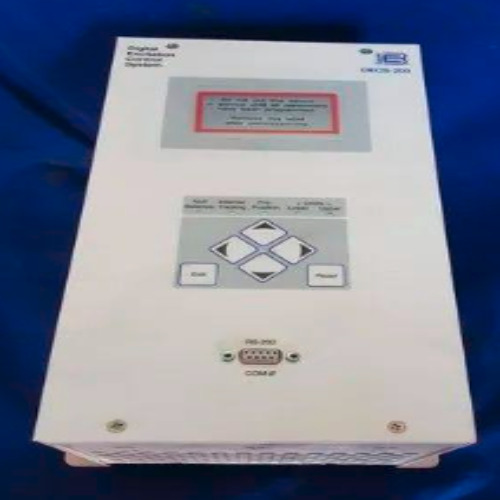

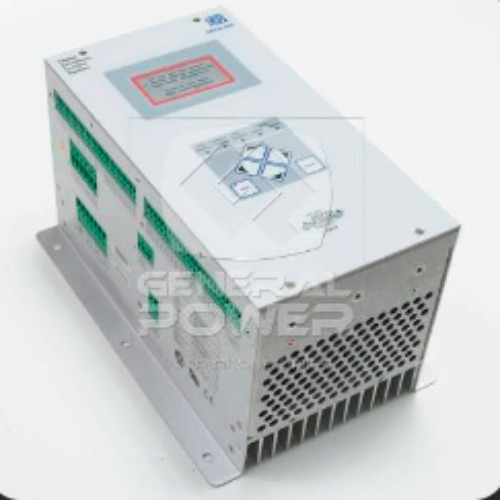

BASLER-AVR-DECS200-1C

Price 487887.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

BASLER-AVR-DECS200-1C Specification

Power Rating
1875 W

Output Current
15 A DC Ampere (amp)

Input Voltage
56 277 V AC Volt (V)

Output Voltage
32 / 63 / 125 V DC Volt (V)

Efficiency
N/A

Frequency (MHz)
50/60 Hertz (HZ)

Warranty
12 MONTH

Rated Voltage
125 V DC Volt (V)

Current
5, , D, C, 1, A, Ampere (amp)

Usage & Applications
The Basler DECS-200-1C Digital Automatic Voltage Regulator (AVR) is used for automatic voltage regulation and excitation control of compatible synchronous generators and alternators. It maintains generator terminal voltage by regulating the excitation current according to configured operating conditions. Applications: Diesel and gas generator sets Industrial power generation plants Synchronous generators and alternators Generator excitation control panels Captive power plants and utility power systems Generator maintenance, repair, and replacement projects Industrial electrical power generation systems

Operating Temperature
40 C to +85 C. Celsius (oC)

Weight
6.35 kg Kilograms (kg)

Cable Type
Control Cable

Ambient Temperature
40 C to +60 C Celsius (oC)

Phase
Single Phase

Display Type
64 128 Pixel Backlit Graphic LCD Display

Degree of Protection
N/A

Features
Digital automatic voltage regulation (AVR) Four control modes: AVR, Manual/Field Current Regulation (FCR), Reactive Power (VAR), and Power Factor (PF) Voltage regulation accuracy: 0.25% Excitation output: 32 / 63 / 125 V DC, up to 15 A DC True RMS sensing: single-phase or three-phase generator voltage Soft-start excitation buildup Overexcitation and underexcitation limiters Underfrequency compensation and V/Hz limiter Generator overvoltage and undervoltage protection Field overvoltage and overcurrent protection Exciter Diode Monitoring (EDM) Generator paralleling and reactive droop compensation Backlit LCD display with front-panel pushbuttons RS-232 and RS-485 communication interfaces Modbus communication support Event recording and oscillography

Conductor
No Separate Conductor

Frequency
50/60 Hertz (HZ)

Rated Current
15 A DC Ampere (amp)

Control System
Digital Microprocessor-Based Control System

Material
Metal and Electronic Components

Usage
Other

Insulation Resistance
N/A

Design
Digital Panel-Mount

Voltage Protection
Generator overvoltage protection Generator undervoltage protection Excitation field overvoltage protection Loss-of-voltage-sensing protection

Display
LCD

Dimension (L*W*H)
205 171 304 mm Millimeter (mm)

Rated Power
1.875 kW

Current Type
DC

Waveform Distortion
Not Specified

Product Type
Digital Generator AVR (Automatic Voltage Regulator)

BASLER-AVR-DECS200-1C Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About BASLER-AVR-DECS200-1C

The Basler Electric DECS-200-1C is a digital excitation control system designed for generator voltage regulation and excitation management in industrial and power generation applications. It helps maintain stable generator terminal voltage by controlling the excitation system in accordance with the configured operating parameters.

This controller is intended for use with compatible synchronous generators and alternators in industrial power plants, utility installations, and standby or prime power generation systems. Its suitability depends on the generator specifications, excitation arrangement, wiring configuration, and exact DECS-200 model variant.

Key Features:

Digital automatic generator voltage regulation
Generator excitation control
Adjustable voltage regulation parameters
Designed for compatible synchronous generator applications
Industrial power generation control application
Integration with compatible generator excitation systems
Suitable for replacement and maintenance requirements, subject to configuration verification

Applications:

Diesel generator sets
Gas turbine generator systems
Industrial power plants
Synchronous alternators
Generator excitation panels
Power generation and electrical maintenance systems

Technical Information:

Manufacturer: Basler Electric
Model: DECS-200-1C
Equipment type: Digital AVR / Excitation Controller
Operating application: Generator voltage and excitation control
Compatibility: To be verified against the existing unit and generator specifications

Supply Information:

Quantity: As required
Condition: New / Used / Refurbished, as actually available
Accessories: As per supplier offer
Warranty: Subject to supplier terms
Delivery: Subject to stock confirmation
Documentation: Datasheet and applicable technical documents, subject to availability
