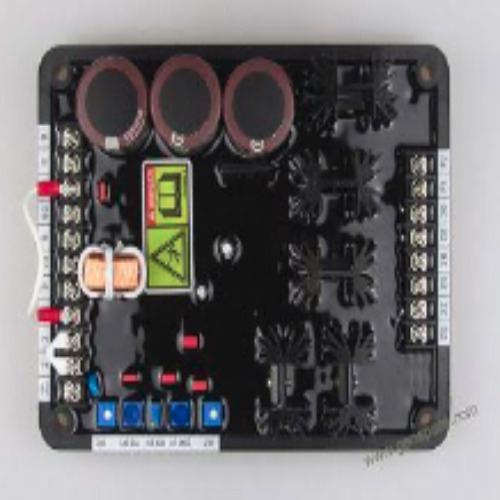

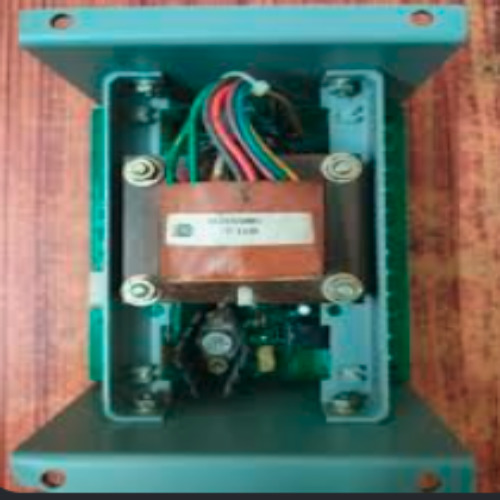

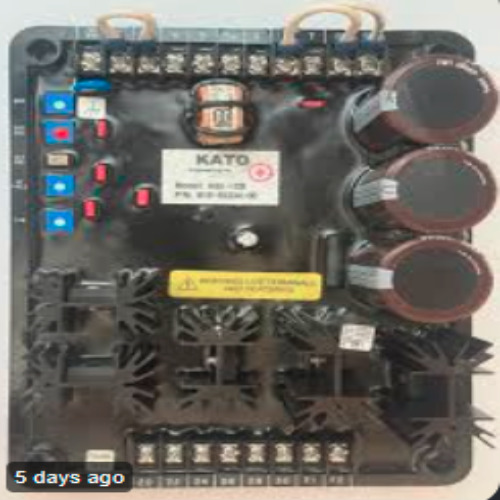

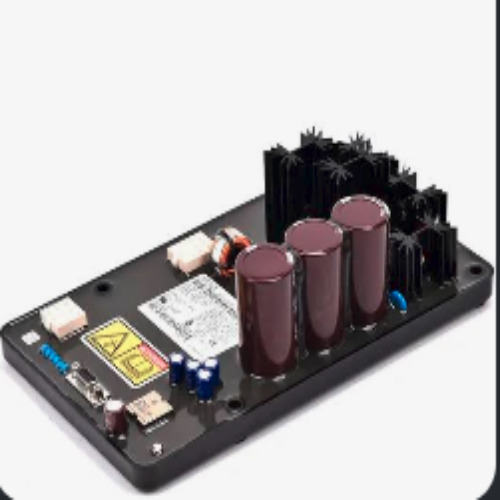

KATO Automatic Voltage Regulator

Price 287775.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

KATO Automatic Voltage Regulator Specification

Power Rating
780 W

Output Current
12 A DC Ampere (amp)

Input Voltage
100 280 V AC (single-phase) or 63 105 V AC (three-phase) Volt (V)

Output Voltage
65 V DC Volt (V)

Efficiency
N/A

Frequency (MHz)
50/60 Hertz (HZ)

Warranty
12 MONTH

Rated Voltage
65 V DC Volt (V)

Usage & Applications
Used in synchronous generators and alternators to automatically regulate output voltage by controlling the excitation current. Suitable for industrial generator sets, standby power systems, diesel generator (DG) sets, and power generation plants. Helps maintain stable voltage during load variations and improves generator performance and reliability.

Current
1 Ampere (amp)

Cable Type
Multicore insulated copper control cable

Operating Temperature
40 C to +70 C Celsius (oC)

Weight
1.1 Kilograms (kg)

Ambient Temperature
40 C to +70 C Celsius (oC)

Degree of Protection
N/A

Phase
Single-phase or Three-phase

Display Type
No Display

Material
lectronic components mounted on a printed circuit board (PCB), housed in a metal enclosure with insulated electrical terminals.

Frequency
50/60 Hertz (HZ)

Rated Current
12 A DC Ampere (amp)

Conductor
Copper

Features
Automatic generator output voltage regulation. High regulation accuracy ( 0.5%). Fast response to load variations. Adjustable voltage setting. Selectable single-phase or three-phase sensing. Adjustable frequency compensation (V/Hz). Overexcitation protection. Low residual-voltage build-up capability. Built-in EMI suppression. Solid-state electronic design for reliable operation.

Control System
Automatic electronic excitation control system (solid-state AVR) for synchronous generators.

Usage
Other

Insulation Resistance
N/A

Design
Solid-state electronic design with PCB-based circuitry, adjustable voltage control, frequency compensation, and excitation current regulation for synchronous generators.

Voltage Protection
Overexcitation shutdown protection.

Display
Other

Dimension (L*W*H)
162 213 76 Millimeter (mm)

Rated Power
780 W

Current Type
DC

Waveform Distortion
N/A

Product Type
Solid-State Electronic Generator Voltage Regulator.

KATO Automatic Voltage Regulator Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About KATO Automatic Voltage Regulator

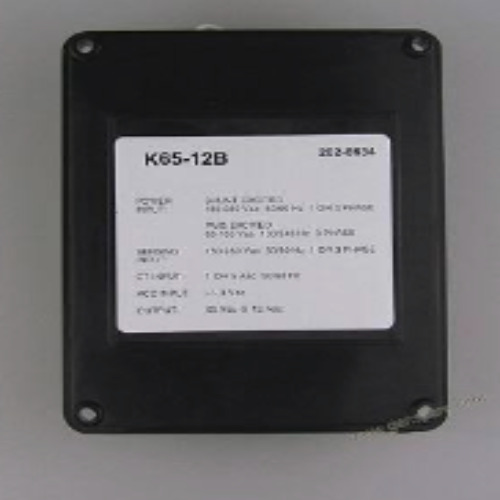

The KATO Engineering K65-12B Automatic Voltage Regulator (AVR) is a solid-state electronic device designed to regulate the output voltage of synchronous generators and alternators by controlling the excitation current. It provides automatic voltage regulation during load variations and supports adjustable voltage settings, frequency compensation, and overexcitation protection. The regulator supports single-phase or three-phase sensing, depending on the configuration, and is suitable for industrial generator sets, diesel generator sets, standby power systems, and power generation applications.

Technical Specifications

Parameter	Specification
Brand	KATO Engineering
Model	K65-12B
Product Type	Automatic Voltage Regulator (AVR)
Design	Solid-state electronic
Application	Synchronous generators and alternators
Input Voltage	100280 V AC single-phase or 63105 V AC three-phase, depending on configuration
Output Voltage	65 V DC (continuous rating)
Output Current	12 A DC (continuous rating)
Rated Output Power	780 W (calculated)
Current Type	AC input / DC output
Phase	Single-phase or three-phase sensing/input, depending on configuration
Display Type	No built-in digital display confirmed
Control System	Automatic electronic excitation control
Voltage Regulation	0.5%
Frequency Compensation	Selectable V/Hz compensation
Protection	Overexcitation shutdown
EMI Suppression	Internal EMI filter
Operating Temperature	40C to +70C (verify against the applicable manual revision)
Waveform Distortion	Not specified
Efficiency	Not specified
Insulation Resistance	Not specified
Degree of Protection	Not specified
Conductor Material	Not confirmed by manufacturer documentation
Cable Type	External wiring selected according to installation requirements
Approximate Dimensions	16.2 21.3 7.6 cm
Approximate Weight	1.1 kg (verify before procurement)
