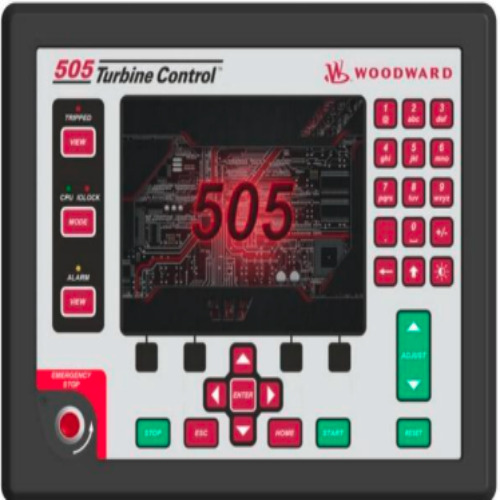

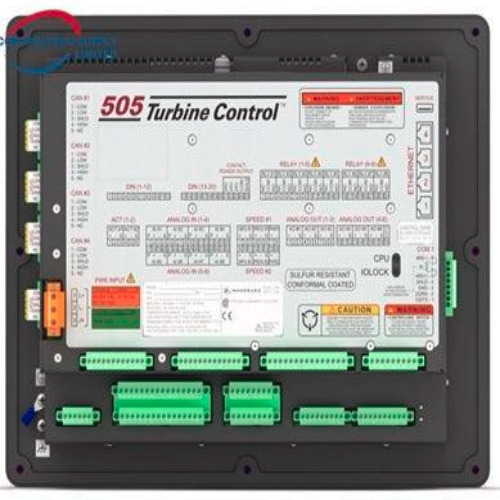

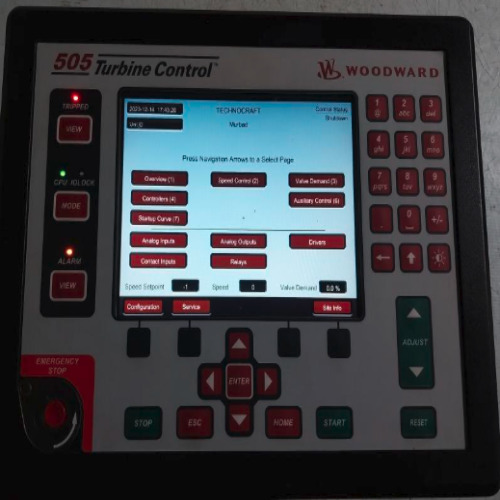

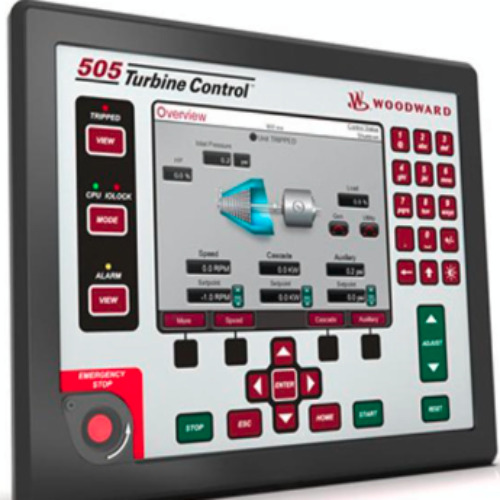

Woodward 505D

Price 1875000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Woodward 505D Specification

Power Rating
77 W

Product Type
Digital Steam Turbine Controller (Microprocessor-Based Turbine Control System).

Function
Controls and monitors steam turbine speed, load, and actuator operation to maintain stable and efficient turbine performance in industrial power generation and process applications.

Application
Used in steam turbine-driven generators, industrial power plants, compressors, pumps, and process industries for turbine speed regulation, load control, and actuator management.

Size
35.8 28.2 10.2 cm

Weight
5 7 kg Kilograms (kg)

Capacity
1 Pcs/hr

Feature
Digital microprocessor-based steam turbine controller. 8.4-inch graphical LCD display with integrated keypad. Precise turbine speed and load regulation. Programmable PID control. Actuator control for steam turbine governing. Configurable alarms and shutdown functions. Communication with plant DCS/HMI systems. Real-time turbine monitoring and parameter adjustment. Designed for industrial steam turbine applications.

Advantage
Provides precise steam turbine speed and load control. Improves turbine operating stability and performance. Offers easy operation through an integrated LCD display and keypad. Supports configurable control parameters and actuator management. Enables alarm monitoring and turbine protection-related functions. Supports communication with plant automation systems. Reduces manual intervention through automated turbine control. Suitable for industrial power generation and process applications.

Usage & Applications
Used for controlling and monitoring steam turbine operation, including turbine speed regulation, load control, and actuator management. Commonly applied in industrial power plants, steam-driven compressors, pumps, generators, and process industries requiring reliable turbine control.

Rated Voltage
18 36 V Volt (V)

Cable Type
Shielded industrial control cable for signal and communication connections; power-supply cable as per the controller s rated voltage and installation requirements.

Operating Temperature
30 C to +70 C Celsius (oC)

Display Type
8.4-inch color LCD graphical display

Phase
Single-phase

Material
Industrial-grade metal enclosure with electronic circuit boards, copper conductors, and plastic components for insulation and the display/keypad assembly.

Rated Current
Up to 4.3 Ampere (amp)

Features
Digital microprocessor-based steam turbine control. Graphical LCD display with integrated keypad. Precise turbine speed and load regulation. Programmable PID controllers for speed, load, and process control. Supports single or dual split-range actuator control. Configurable alarms, trips, and first-out trip indication. Modbus communication for integration with plant DCS/HMI systems. Online parameter adjustment and turbine monitoring. Suitable for generator, pump, compressor, and industrial process turbine applications.

Frequency
50/60 Hz Hertz (HZ)

Conductor
Copper

Woodward 505D Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Woodward 505D

The Woodward 505D Digital Turbine Control System is an advanced microprocessor-based controller designed for steam turbine governing and control applications. It regulates turbine speed and load by controlling steam admission valves through compatible actuators. The system provides operator interface functions, real-time operating data, alarm monitoring, configurable control logic and communication with plant control systems.

It is suitable for industrial power plants, captive power generation, steam-driven compressors, pumps and other turbine-driven equipment. Its configurable control functions support stable turbine operation, operating-condition monitoring and integration with industrial automation systems.

Key features:

Digital turbine speed and load control.
Steam valve and actuator control.
Operator interface for monitoring and adjustments.
Alarm indication and operating-status monitoring.
Configurable control functions and setpoints.
Industrial control-system integration.
Designed for continuous industrial operation.

Note: Exact functions, electrical ratings, inputs/outputs and communication options depend on the specific 505D model and configuration. Verify the unit's part number and datasheet before procurement.
