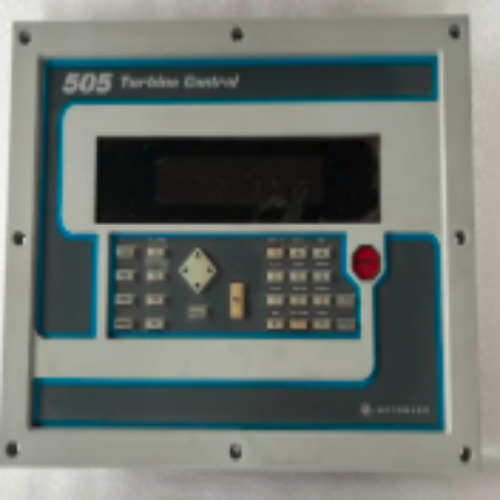

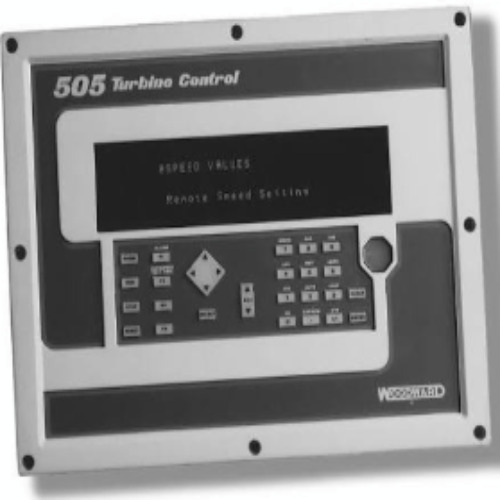

Woodward 505E

Price 2475000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Woodward 505E Specification

Power Rating
77 180 VA

Product Type
Digital Steam Turbine Governor / Controller.

Function
Steam Turbine Speed and Load Control, Extraction/Admission Pressure Regulation, and Turbine Valve Control.

Application
Steam turbine power generation plants Industrial cogeneration (CHP) systems Extraction/admission steam turbine control Industrial process plants Turbine-driven pumps and compressors Speed, load, and steam pressure regulation

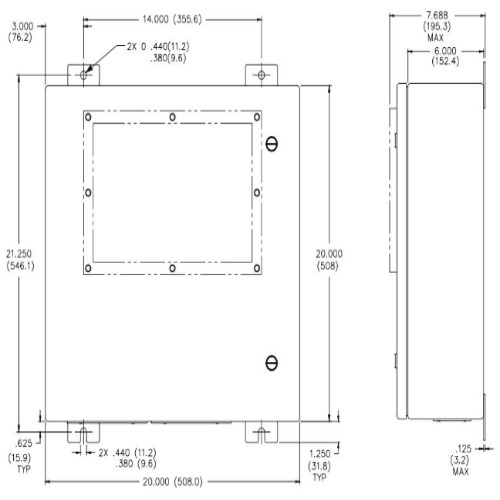

Size
28 36 10 cm

Weight
4 kg Kilograms (kg)

Warranty
12 MONTH

Capacity
1 Pcs/hr

Feature
Digital steam turbine governor Speed and load control Extraction/admission steam pressure control Dual control valve outputs Automatic turbine start-up control Critical speed avoidance Front-panel display and keypad Modbus communication Configurable alarms and trip indication Industrial power generation and process control applications

Advantage
Precise Control: Accurate steam turbine speed and load regulation. Improved Efficiency: Helps optimize turbine operation according to process requirements. Pressure Regulation: Supports extraction/admission steam pressure control. Reliable Operation: Designed for continuous industrial turbine control. Automatic Control: Supports configurable turbine start-up and operating sequences. System Integration: Modbus communication with compatible monitoring and control systems. Easy Monitoring: Front-panel display and keypad for settings and operating information. Protection Functions: Supports configured turbine alarms and trip-related functions. Flexible Configuration: Adaptable to different extraction/admission turbine applications.

Usage & Applications
Used for controlling and regulating steam turbine speed, load, and extraction/admission steam pressure in industrial power generation and process plants. Applications: - Steam turbine speed and load control - Power generation and cogeneration plants - Industrial process steam systems - Extraction/admission steam pressure control - Turbine-driven pumps, compressors, and other machinery - Integration with turbine control and monitoring systems

Rated Voltage
90 150 V DC Volt (V)

Cable Type
Shielded Instrumentation Cable

Operating Temperature
25 C to +65 C Celsius (oC)

Display Type

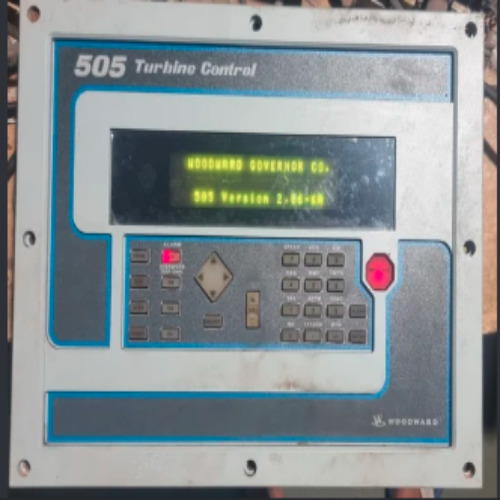

LED display, 2 lines 24 characters each, with a 30-key front-panel keypad. Woodward

Phase
Single Phase

Frequency
50/60 Hertz (HZ)

Material
Metal and Electronic Components

Conductor
Copper

Rated Current
90 150 V DC Ampere (amp)

Features
Digital steam turbine speed and load control Extraction/admission steam pressure or flow control Dual HP and LP control valve outputs Automatic turbine start-up sequence for hot and cold starts Critical speed avoidance Overspeed trip peak-speed indication Isochronous load sharing between units Dual speed/load dynamics First-out trip indication Modbus communication for DCS and operator interface integration Front-panel digital display and keypad for configuration and operation

Woodward 505E Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About Woodward 505E

The Woodward 505E Digital Governor is an advanced electronic control system designed for industrial steam turbines with controlled extraction and/or admission pressure. It provides accurate turbine speed and load regulation along with extraction/admission pressure or flow control, depending on the application configuration. The controller supports two valve-control outputs and offers configurable analog and discrete inputs for integration with turbine instrumentation and auxiliary equipment.

The unit features a front-panel digital display and keypad for configuration, monitoring, adjustment and turbine operation. Modbus communication supports integration with compatible supervisory control systems and operator interfaces. It is suitable for industrial power generation, cogeneration plants and process industries using extraction steam turbines.

Key Features:

Digital steam turbine speed and load control
Extraction/admission pressure or flow regulation
Dual valve-control capability

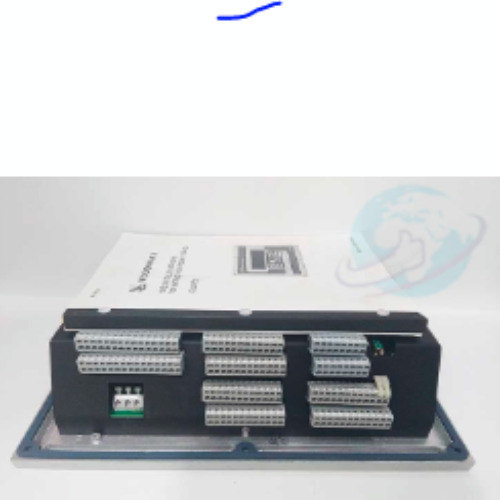

Configurable analog and discrete inputs
Modbus serial communication
Front-panel display and keypad
Industrial control-panel mounting
Multiple power-supply variants available

Applications: Steam turbine power plants, cogeneration systems, industrial process plants and turbine-driven machinery.
